CO2 Sensor Module (030-8-0006)

The K30 10,000 ppm CO2Sensor Module (030-8-0006) is industry-renowned for its affordability, accuracy, longevity, and minimal maintenance. It is utilized in numerous HVAC and IAQ products and applications andeasily programmable with multiple output options, fitting almost all original equipment manufacturerproject requirements.

Features

Suitable for commercial, residential, HVAC, or IAQ applications

Easy installation, pre-calibrated, and ready to use

Provides two analog outputs and two digital outputs

Reliable, cost-effective, and maintenance-free

Models

K30 CO2 Sensor (030-8-0006):Designed for integration into high-volume OEM products.

K30 CO2 Sensor with Custom Outputs (030-8-0006-C):Customize analog or digital outputs to suit allapplication needs.

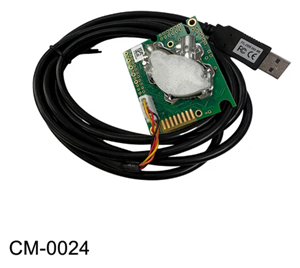

K30 CO2 Sensor Development Kit (CM-0024):Simple to use; connect the sensor module to the PC via USB. Utilize the free GasLab^® software to measure and graph CO₂ levels in real-time or for data logging.

Sensor Development Kit (CM-200):Easy to operate; connect the sensor to the PCB, then link it to the PC via USB. Use the free GasLab^® software for CO₂ measurement and graphing, or access the source code library on Github to create an application or for OEM batch testing/configuration.

Specifications

CO₂ Measurement: Non-dispersive infrared

Rate of Measurement: Every twoseconds

Measurement Range: 0-10,000 ppm (0-5,000 ppm within specifications)

Response Time Diffusion: 20 seconds

Automatic Background Calibration (ABC): Enabled unless specified

Response Time Sample Draw: 2 seconds @ .5 l/minute tube gas flow

Outputs: Twoanalog, twodigital

Warm-up Time: < 1 minute (@ full specs < 15 minutes)

Programmable Range: 0-10,000 ppm (custom configuration required)

Accuracy: ± 30 ppm ± 3 % of measured value within specifications

Repeatability: ± 20 ppm ± 1 % of measured value within specifications

Maintenance Interval: No maintenance required

Self-Diagnostics: Complete function check at startup

Dimensions: 51 × 58 × 14 mm (Length × Width × approximate Height)

Sensor Life Expectancy: > 15 years

Conforms with Standards

Immunity: EN61000-6-2:2001

Emission: EN61000-6-3:2001

Compliant with RESET grad B

Compliant with ANSI/ASHRAE Standard 62.1-2022

Compliant with WELL Building Standard^® (WELL v2^TM)

RoHS directive 2002/95/EG

Electrical/Mechanical

Current Consumption: 40 mA average

Power Input: 5.5-14 VDC, stabilized to within 10 % (external protection circuits required)

Sampling Method: Diffusion (tube cap optional)

Warranty

90 days

Accessories

Gas Sensor Development Kit (CM-0024):Offers an easy drop-in solution, complete with the free GasLab data logging software.

Tube Cap Adapter:Converts the sensor from ambient CO₂ measurement to a sample draw sensor. Use with a pump, tubing, and filters to measure CO₂ levels in enclosed spaces.

Sample Draw Pump Kit:Provides all necessary components to create a closed CO₂ measurement system with a sample draw sensor.

Probe Enclosure:Comes with hydrophobic filters, providing sensor protection in harsh environments.
