Conducell 4U×F Conductivity Sensor
The Conducell 4U×F Arc 4-pole conductivity sensors have a VP8 connector and PG13,5 process connections. The Arc technology incorporated in these sensors enables the storage of calibrations within the sensor itself, providing predictive diagnostics, automated documentation, and user and process assignment features.
These sensors can be directly connected to the control system, eliminating the need for a transmitter. Their compatibility with various communication protocols enablessimple integration.
These Conducell 4U×F sensors are FDA-certified and can be utilized in hygienic applications, as they are compatible with CIP, SIP, and autoclave processes, offering excellent linearity across a wide range of conductivity levels.
The electrodes for these sensors come in different materials, including Stainless Steel (USF, 1.4435, & UHF, 2.4602), Platinum (UPtF), and Titanium (UTF). Stainless steel 1.4435 is the most commonly used electrode material suitable for typical biopharmaceutical applications.
Platinum can be utilized for long-term stability and corrosion resistance. Stainless steel 2.4602 can be used in extremely corrosive or chemically aggressive applications because of its remarkable resilience. Titanium is particularly suited for use with corrosion, such as seawater.
Source: Hamilton Process Analytics
| Part # / Ref | a-length | Process Connection | Wetted Parts | Sensor Output |
|---|---|---|---|---|
| 243590-1171 |
21 mm |
Triclamp 1.5" |
Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
Arc: Modbus, 4 to 20 mA |
| 243590-3171 |
21 mm |
Triclamp 1.5" |
Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
Arc: Modbus, 4 to 20 mA |
| 243590-1151 |
30 mm |
PG13,5 |
Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
Arc: Modbus, 4 to 20 mA |
| 243590-2151 |
30 mm |
PG13,5 |
Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
Arc: Modbus, 4 to 20 mA |
| 243590-3151 |
30 mm |
PG13,5 |
Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
Arc: Modbus, 4 to 20 mA |
| 243590-4151 |
30 mm |
PG13,5 |
Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
Arc: Modbus, 4 to 20 mA |
| 243590-1161 |
60 mm |
PG13,5 |
Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
Arc: Modbus, 4 to 20 mA |
| 243590-2161 |
60 mm |
PG13,5 |
Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
Arc: Modbus, 4 to 20 mA |
| 243590-3161 |
60 mm |
PG13,5 |
Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
Arc: Modbus, 4 to 20 mA |
| 243590-4161 |
60 mm |
PG13,5 |
Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
Arc: Modbus, 4 to 20 mA |
| 243590-1111 |
120 mm |
PG13,5 |
Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
Arc: Modbus, 4 to 20 mA |
| 243590-2111 |
120 mm |
PG13,5 |
Platinum PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
Arc: Modbus, 4 to 20 mA |
| 243590-3111 |
120 mm |
PG13,5 |
Stainless Steel 2.4602 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
Arc: Modbus, 4 to 20 mA |
| 243590-4111 |
120 mm |
PG13,5 |
Titanium PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
Arc: Modbus, 4 to 20 mA |
| 243590-1121 |
215 mm |
PG13,5 |
Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
Arc: Modbus, 4 to 20 mA |
| 243590-2121 |
215 mm |
PG13,5 |
Platinum PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
Arc: Modbus, 4 to 20 mA |
| 243590-3121 |
215 mm |
PG13,5 |
Stainless Steel 2.4602 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
Arc: Modbus, 4 to 20 mA |
| 243590-4121 |
215 mm |
PG13,5 |
Titanium PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
Arc: Modbus, 4 to 20 mA |
| 243590-1131 |
325 mm |
PG13,5 |
Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
Arc: Modbus, 4 to 20 mA |
| 243590-2131 |
325 mm |
PG13,5 |
Platinum PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
Arc: Modbus, 4 to 20 mA |
| 243590-3131 |
325 mm |
PG13,5 |
Stainless Steel 2.4602 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
Arc: Modbus, 4 to 20 mA |
| 243590-4131 |
325 mm |
PG13,5 |
Titanium PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
Arc: Modbus, 4 to 20 mA |
| 243590-1141 |
425 mm |
PG13,5 |
Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
Arc: Modbus, 4 to 20 mA |
| 243590-2141 |
425 mm |
PG13,5 |
Platinum PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
Arc: Modbus, 4 to 20 mA |
| 243590-3141 |
425 mm |
PG13,5 |
Stainless Steel 2.4602 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
Arc: Modbus, 4 to 20 mA |
| 243590-4141 |
425 mm |
PG13,5 |
Titanium PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
Arc: Modbus, 4 to 20 mA |
Accessories

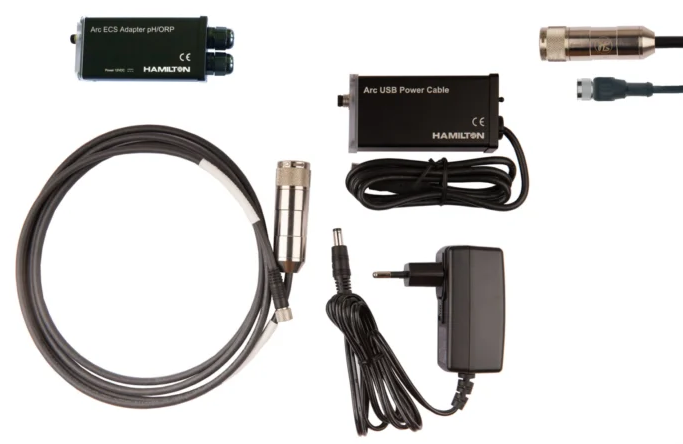

Arc Software and Accessories
Simplify the calibration, configuration, and other common workflows of Arc sensors through ArcAir software and wireless accessories.
Image Credit: Hamilton Process Analytics
Arc Sensor Cables
M12 or Variopin connectors are included with genuine Hamilton cables for Hamilton Arc sensors. The Arc sensor is programmed using these cables, which are also utilized for direct connections to the bioreactor or control system.
Image Credit: Hamilton Process Analytics

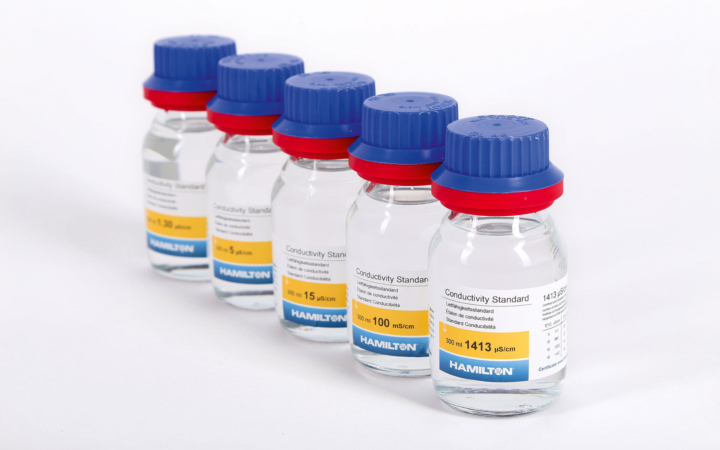

Hamilton Conductivity Standard Solution
Conductivity varies from 1.3 µS/cm to 100 mS/cm, while stability spans from one to three years respectively.
Image Credit: Hamilton Process Analytics
