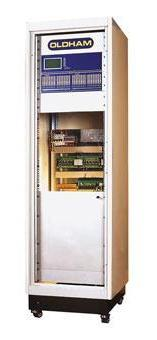

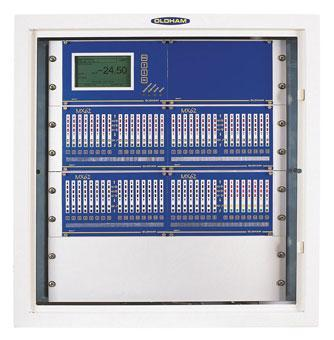

Gas Detection Controller - MX 62

Teledyne’s MX 62 is an appealing solution for gas and flame detection requirements. The MX 62 is a modular and versatile controller that is easy to set up and helps to minimize operational costs.

The MX 62 system meets the ATEX 100 A regulations and provides a high security level as mandated by the SIL3 and SK2 rated systems.

Cost-Effective and Secure Installation

The structure of the MX 62 platform has been engineered to offer redundancy. Precise data is relayed promptly from the detectors to the relays.

Structured Programming

The MX 62 is configured using the ConfigPro.exe software, via a secure and password-protected interface.

Saves Space and Optimizes Cost

Novel design matches the new safety demands

Flexibility allows improved integration with the user’s system

Modularity allows a customized operation and custom wiring

Programmable outputs minimize relay requirements

High dependability guarantees minimum maintenance

Various Modules

LED Module (A)

16 channels (8 channels as standard).

Power “on”

Reset/acknowledge

4 alarm thresholds

Fault

LCD Module (B)

Up to 30 displays can be linked to the MX 62, which facilitates the measurement display at any place and at any time.

User-friendly display graphics

Graphic, alphanumeric, high-definition LCD

Can be remote via RS 485

Data storage: optional 5 days

Printer Module (C)

Parallel connection

Printing alarms, fault, relay operating status, minimum/maximum average more than 8 hours

Type ASCII, alphanumeric 40 or 80 characters

CPU Module (D)

The CPU module is the core of the system, with two processors and backup power supply.

Plug in the LCD and LED modules, or remote connection through RS485 (4 wires + shield).

Allows connection to multiple modules

Offers centralized management

Allows connection to an external or internal printer

Analog Input Module (E)

Analog signals from the detectors can be input to the control system. Dual converters guarantee dependable and redundant operation.

Allows direct link with the MX 62 system or remote through the adapter module

Offers up to 8 measurement points, 2 or 3 wires

Adapter Module (F)

Facilitates three operating modes:

Connection of two analog input modules

Integration of up to eight addressable detectors with a remote analog module

Loop configuration of up to 16 addressable detectors

The module can be remote through two RS485 networks (2 x 4 wires + screened platform)

Relay Module (G)

Equipped with two processors connected to the CPU

Separately programmable positive safety

Principal module: 8 relays

Extension module: 8 relays

Breaking capacity: 460 VA, 60 W

NO/NC contacts

The module can be remote through 2 RS485 (2 x 4 wires + screened platform)

Analog Output Module (H)

Equipped with two processors connected to the CPU

Fitted with eight analog 0–10 V or 4–20 mA outputs

Each output is designed to transmit:

The linearized value

The real-time value for each input

Means or max. for a detector group

Mimic module: open collector (56) ideal to drive LED mimic panel according to MX 62 channel

Communication Module (I)

Allows to connect with CPU via the RS 232

Possible to connect to a supervisor for data exportation (DCS, PLC, or SCADA)

Offers Modbus or personalized protocol via RS 422

A communication splitter module is available (Optional).



Key Features

Up to 64 secured channels available for direct or network wiring

SIL2 and SIL3 according to IEC61508:2011 and EN50402:2006

Users can choose direct network and loop connection

Offers redundancy from measurement to alarm relays

Functions including AND, MIN, MAX, OR, Voting
