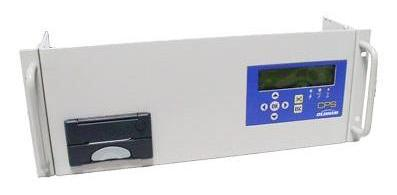

Gas Detector Controller Car Park System (CPS)

The CPS car park air monitor from Teledyne precisely and consistently protects the employees and public from airborne poisonous gases in tunnels and parking zones. The system was built to adhere to the high air quality safety standards imposed in European countries such as the Netherlands, Germany, and Belgium.

Optimizes Ventilation for Energy Savings

Non-stop air monitoring considerably minimizes the operating costs by regulating the efficiency of servo controls and ventilation systems. Such efficiencies can cause energy savings of up to 40% when used with precise types of equipment.

Versatile and Programmable

Available in rack- and wall-mounted models, the CPS™ central controller and its related modules are user-programmable for particular car park applications. The networking technology in the system further permits the Car Park System™ to adjust to any installation up to:

256 addressable relays

256 sensors capable of tracking six types of gases

256 analog outputs

64 logic inputs

Allows the use of multiple servo controls: low speed/high speed, forced operation, delays, night mode, etc.

Features of the CPS Car Park Air Monitor

Large LCD with instantaneous readings

1 to 8 channels

Up to 256 detectors

Status of the entire installation swiftly provided through three LEDs

Substantial electricity savings in parking facilities

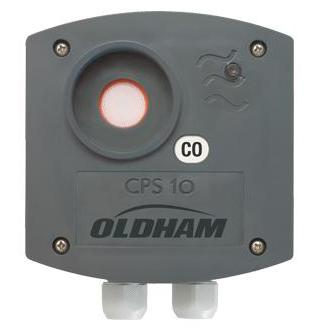

Monitoring of up to six different types of gases by Multi-gas monitors:

Hydrogen

Methane

Nitric oxide

Carbon monoxide

Nitrogen dioxide

Liquefied petroleum gas
