MX 256 Control Unit — For Gas Detection and Measurement

Teledyne Gas and Flame Detection provide high-performance gas detection systems. The collection also includes a variety of units and alarms that are compatible with gas detectors.

Why Use a Gas Detection Controller?

A fixed detection system’s key component is the gas detection controller. It is linked to many detectors and provides continuous and permanent monitoring of places exhibiting gas leak threats.

It is important to notethat the ATEX EN 50271 certifications and metrological performance as per EN60079-29-1 of the detector installation assure secure operation.

The device begins by analyzing the gas measurements provided by the detectors. It produces actions to warnusers of the hazards associated with an excessive concentration of gas in the case of an abnormal threshold. These actions are predefined by the user and can include sound and/or light signaling, servo-controls, or alarm reporting through remote transmission.

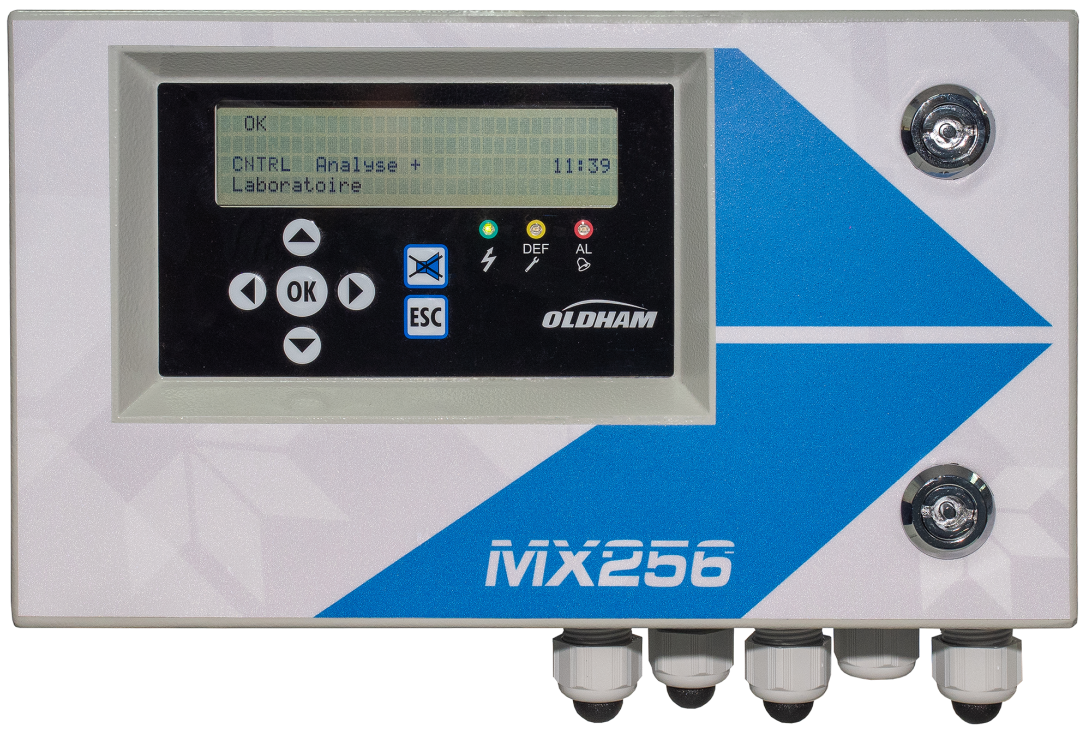

MX 256 — The New Gas Detection Controller

When using various gases, hazards can arise happening every day and it can be difficult to guarantee the safety of the employees in a working environment.

Image Credit: Teledyne Gas and Flame Detection

Teledyne is delighted to announce the launch of MX 256 — its latest addition. With over 200 gas detection sites, this low-cost device delivers versatile, accurateand dependable site management, while its semi-automatic magnetic calibration simplifies maintenance to guarantee that the user’s system stays healthy, even in the harshest of settings.

Furthermore, compared to employing several stations for more extensive places such as labs, hotels, schools, colleges, and public and industrial buildings, these fully addressable sensors significantly reduce installation costs and, more crucially, the entire cost of ownership.

The MX 256 joins the MX family of units, which has the MX 16, MX 32, MX 40, MX 43, MX 52, and MX 62, to provide clients with a diverse choice of solutions to fulfill gas detection requirements.

Strong Points

256 Addressable Relays

256 Analogue Outputs

224 Logic Inputs

256 Digital Sensors

The OLCT 10N line of digital detectors can detect the following gases: O₂, NO, NO₂, NH₃, CO, CO₂

Integrated Relays

Digital control unit with 8-line

Large Capacity

Small in size and simple to install

The MX 256 is small and easy to install in a wall-mounted box; setup is done using the COM 256 programming software.

The MX 256’s new industrial controller or remote HMI option allows:

The connection of 4-20 mA detectors

Data recording on a USB key or SD card

To provide a diagnosis of the installation or to share the recorded informationthanks to its embedded web page

A variety of uses are possible:

Research Laboratories

Image Credit: Teledyne Gas and Flame Detection

Production and storage areas, large industrial warehouses.

Image Credit: Teledyne Gas and Flame Detection

Public buildings/hotels/commercial facilities

Image Credit: Teledyne Gas and Flame Detection

Universities/schools

Image Credit: Teledyne Gas and Flame Detection

New Gas Detection Controller MX256Play

Video Credit: Teledyne Gas and Flame Detection
