The Hamilton OneFerm is a glass pH sensor intended for single use. After dry storage and gamma irradiation, it maintains the high accuracy performance of a glass electrode. To make it easier to use, it is supplied as an integrated part of a single-use container. Only integrators like producers of downstream skids, bioreactors, and single-use bags have access to the OneFerm pH sensor.
Source: Hamilton Process Analytics
| Part # / Ref | Sensor Family | Electrical Connector | a-length | Temperature Sensor |
|---|---|---|---|---|
| 10064894 | OneFerm | VP6 | 160 mm | Pt100 |
| 10089592 | OneFerm | VP6 | 425 mm | Pt1000 |
| 10101065 | OneFerm | VP6 | 425 mm | Pt100 |
| 10106075 | OneFerm | K8 | 160 mm | No |
| 10108674 | OneFerm | VP6 | 160 mm | Pt1000 |
| 10155128 | OneFerm | -- | -- | -- |
| 243216 | OneFerm | VP6 | 70 mm | Pt100 |
| 243217 | OneFerm | VP6 | 120 mm | Pt100 |
| 243218 | OneFerm | VP6 | 225 mm | Pt100 |
| 243219 | OneFerm | VP6 | 325 mm | Pt100 |
| 243266 | OneFerm | VP6 | 70 mm | Pt1000 |
| 243267 | OneFerm | VP6 | 120 mm | Pt1000 |
| 243268 | OneFerm | VP6 | 225 mm | Pt1000 |
| 243269 | OneFerm | VP6 | 325 mm | Pt1000 |
| 243271 | OneFerm | K8 | 120 mm | No |
| 243272 | OneFerm | K8 | 225 mm | No |
| 243273 | OneFerm | K8 | 325 mm | No |
| 243274 | OneFerm | K8 | 425 mm | No |
| 243462 | OneFerm | -- | -- | -- |
Required Accessories
pH Port for OneFerm

Image Credit: Hamilton Process Analytics
The OneFerm pH 70 mm sensor is connected to the pH Port, a single-use connector. It can be included in the single-use container for a port and sensor application only.
pH Insert T

Image Credit: Hamilton Process Analytics
The pH Insert T is a single-use attachment for the OneFerm pH 70 mm sensor. It can be fitted into a single-use container for a pH Insert T and sensor application.
Other Accessories

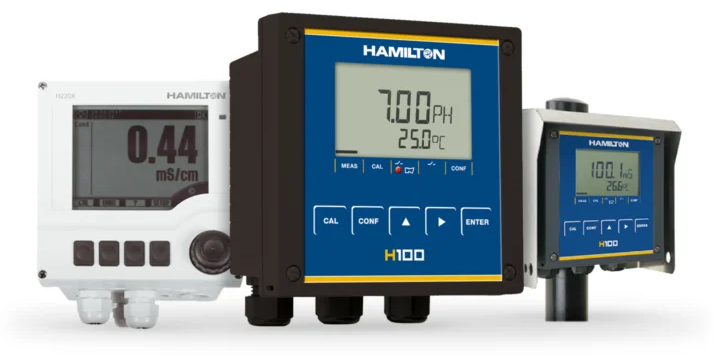

Traditional Transmitters

Image Credit: Hamilton Process Analytics
The Hamilton Transmitter Series combines ease of use and dependability for standard pH, ORP, conductivity, and dissolved oxygen readings.

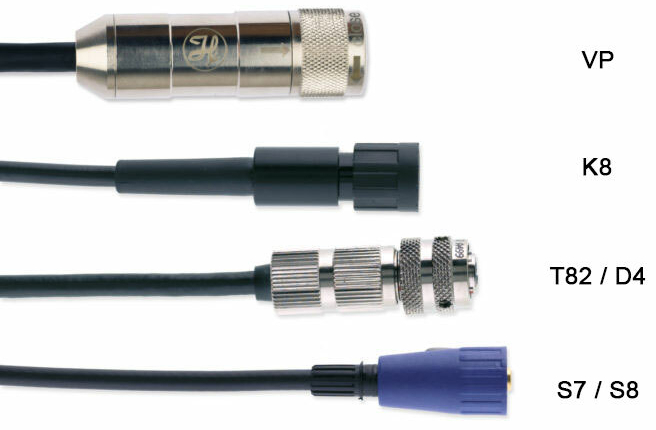

Traditional Sensor Cables

Image Credit: Hamilton Process Analytics
Traditional pH, ORP, and dissolved oxygen sensor cables are available in various connections and cable lengths to suit any application.
