Optris CTlaser 4M: Infrared Thermometer for Low Temperatures

​​​​​​The Optris CTlaser 4M infrared thermometer features a wavelength range of 2.2 to 6 μm, which makes it appropriate for measuring ceramics, metals, metal oxides, or materials with changing or unknown emissivity. It provides a temperature range from 0 °C to 500 °C. The device can be used up to 85 °C without additional cooling.

The Optris CTlaser 4M has an ultra-fast exposure time of 90 μs. The efficient IR thermometer permits the monitoring of high-speed mechanisms and is the perfect pyrometer for low-temperature applications. Selectable outputs and different digital interfaces provide a great variability for the assessment of the measured data.

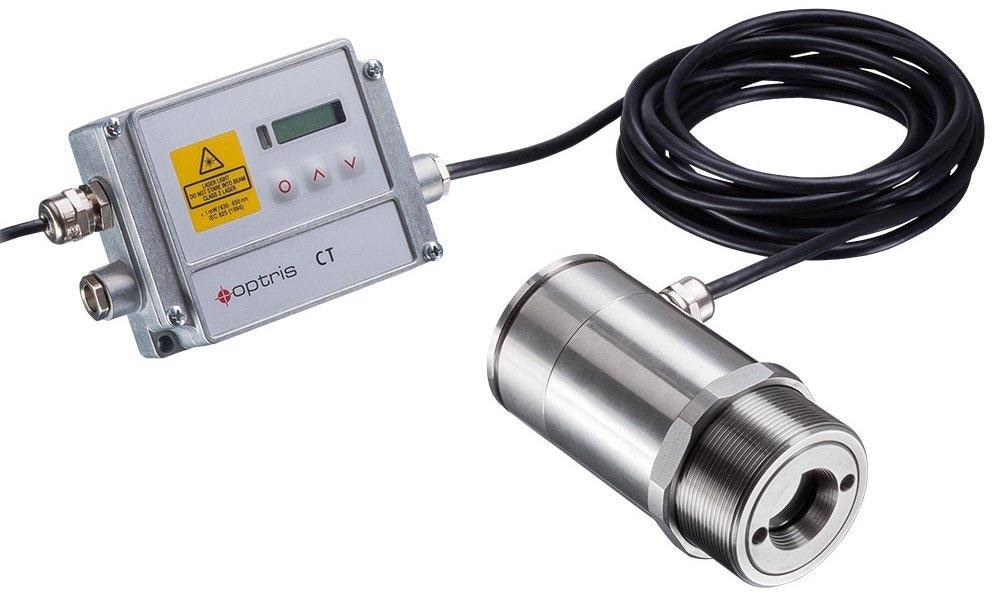

Image Credit: Optris GmbH

Important Specifications

Spectral range from 2.2 to 6 μm

Temperature range of 0 °C to 500 °C

Response time of 300 μs

Pricedfrom€950

Areas of Application for the Infrared Thermometer Optris CTlaser 4M

The Optris CTlaser 4M IR thermometer is the perfect pyrometer to evaluate high-speed and low-temperature applications.

Temperature controls during the processes of soldering, welding, and forging-die forming are not a challenge.

The pyrometer’s spectral range of 2.2–6 μm makes it appropriate for measuring ceramics, metals, metal oxides, or materials with changing or unknown emissivity.
