Pressure Transducer for Direct Media – TR Series
Merit Sensor’s TR Series pressure transducer is a rugged, direct-media pressure monitoring solution built to handle current toughest pressure sensing environments.

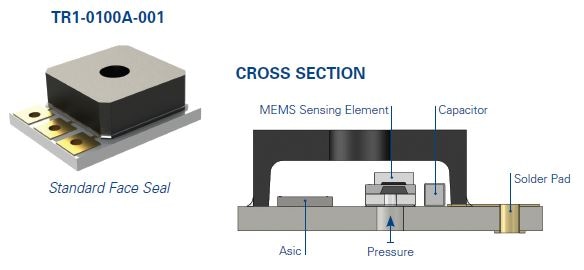

The TR Series pressure transducer is a completely compensated, amplified output pressure sensor package integrating Merit Sensor’s Sentium process harsh media MEMS piezoresistive die with advanced pressure sensor ASIC signal management.
Features
| Features | Min. | Typ. | Max. | Unit | Notes |
|---|---|---|---|---|---|
| Electrical | |||||
| Supply Voltage (Vdd) | 4.5 | 5 | 5.5 | Volts | |
| Supply Current | 10 | mA | |||
| Output Current | 2.5 | mA | |||
| Short Circuit Current | -25 | 25 | mA | ||
| Reverse Polarity Protection | -33 | Volts | Device will cease operation during supply voltage fault. | ||
| Overvoltage Protection | 33 | Volts | Device will cease operation during supply voltage fault. | ||
| ESD | >4 | kV | Human body model 1.5 kOhm/100 pF. | ||
| Performance | |||||
| Output Range (Vout) | 5 | 95 | %Vdd | ||
| Resolution | 0.03 | %FS | 12 bit DAC | ||
| Accuracy | -2.5 | 0 | 2.5 | % FS | Accuracy includes all error for hysteresis and linearity over the entire operating temperature range. It does not include lifetime drift. -40 °C to 150 °C. |
| Static Proof Pressure | 2X FS | PSIA | |||
| Burst Pressure | 3X FS | PSIA | |||
| Lifetime Drift | 0.5 | %FS | |||
| Repeatability | 0.25 | %FS | |||
| Environmental | |||||
| Operating Temperature | -40 | 150 | °C | ||
| Storage Temperature | -55 | 150 | °C | ||
| Weight | 1.08 | Grams | |||
