The NTC Epoxy Thermistors Range from Amphenol Advanced Sensors

上海仪舶实验室自动化 25-02-05 10:24:30

The NTC Epoxy Thermistors Range from Amphenol Advanced Sensors

Amphenol Advanced Sensors has introduced a range of NTC epoxy thermistors.

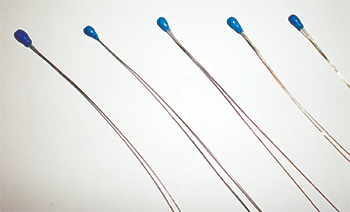

Thermometrics NTC Thermistors | Epoxy Interchangeable Type 65

The Thermometrics Epoxy Type 65 NTC Interchangeable Thermistors are essentially epoxy-coated interchangeable chip thermistors equipped with heavy isomid-insulated nickel lead wires.

The units offer precise temperature measurement, compensation, and control for use across a temperature range of −40 °C to 105 °C (−40 °F to 22 °F) and provide excellent sensitivity that is higher than −4%/ °C at 25 °C (77 °F).

Thermometrics NTC Thermistors | Epoxy Interchangeable Type 65

Thermometrics NTC Thermistors | Epoxy Interchangeable Type 95

The Thermometrics Type 95 of NTC Thermistors are interchangeable, epoxy-coated NTC thermistor chips integrated with bare tinned-alloy, bare tinned-copper, or PTFE-insulated lead wires. They are suitable for temperature measurement, compensation, and control for use across a temperature range of −112 °F to 302 °F (−80 °C to 150 °C) with interchangeability down to ±0.18 °F (±0.1 °C).

Thermometrics NTC Thermistors | Epoxy Interchangeable Type 95

Thermometrics NTC Thermistors | Epoxy Interchangeable Type SC

The Thermometrics Epoxy Type SC NTC Interchangeable Thermistors are sleeved interchangeable chip thermistors equipped with heavy isomid-insulated nickel lead wires. They offer precise temperature measurement, control, and compensation for use across a temperature range of −40 °C to 105 °C (−40 °F to 221°F) and provide high sensitivity that is greater than −4%/°C at 25 °C (77 °F), rendering them perfect for medical applications.

Thermometrics NTC Thermistors | Epoxy Interchangeable Type SC

Thermometrics NTC Thermistors | Epoxy Type C100

The Thermometrics Epoxy Type C100 NTC Thermistors are epoxy-coated chip thermistors fitted with 0.3 mm (0.012″) bare-tinned-copper lead wires. The units are employed for control, temperature measurement, and compensation with a temperature range of −80 °C to 150 °C (−112 °F to 302 °F) and offer high sensitivity that is greater than (−4%/°C at 25 °C (77 °F).

Thermometrics NTC Thermistors | Epoxy Type C100

Thermometrics NTC Thermistors | Epoxy Type MS

The Thermometrics Epoxy Type MS NTC Thermistors are epoxy-coated chip thermistors integrated with 0.254 mm (0.01″) nickel PTFE lead wires. They are employed for control, temperature measurement, and compensation with a temperature range of −50 °C to 150 °C (−58 °F to 300 °F).

Thermometrics NTC Thermistors | Epoxy Type MS

Thermometrics NTC Thermistors | Epoxy Type NDK

The Thermometrics Epoxy Type NDK NTC Thermistors are epoxy-coated chip thermistors with 0.2 mm (0.007″) tinned monel lead wires. The units have been developed for precise temperature measurement, compensation, and control with operation up to 155 °C (311 °F). They are employed inHVAC,automotive and white goods applications.

Thermometrics NTC Thermistors | Epoxy Type NDK

Thermometrics NTC Thermistors | Epoxy Type NDL

The Thermometrics Epoxy Type NDL NTC Thermistors are epoxy-coated chip thermistors integrated with bare 0.0098"(0.25 mm) tinned copper lead-wires. The thermistors have been developed for precise temperature measurement, compensation, and control with an operating range of up to 155 °C (311 °F). They are used in HVAC, automotive and white goods applications.

Thermometrics NTC Thermistors | Epoxy Type NDL

Thermometrics NTC Thermistors | Epoxy Type NDM

The Thermometrics Type NDM of Epoxy NTC Thermistors is epoxy-coated chip thermistors equipped with bare 0.007"(0.2 mm) tinned copper lead-wires. The units have been developed for precise temperature measurement, compensation, and control with an operating range of up to 155 °C (311 °F). They are used in HVAC, automotive, and white goods applications.

Thermometrics NTC Thermistors | Epoxy Type NDM

Thermometrics NTC Thermistors | Epoxy Type NDP

The Thermometrics Epoxy Type NDP NTC Thermistors are epoxy-coated chip thermistors equipped with PTFE/PFA-insulated 0.25 mm (0.0078") nickel lead wires. They have been developed for precise temperature measurement, compensation, and control with an operating range of up to 155 °C (311 °F). They are used in automotive, HVAC and white goods applications.

Thermometrics NTC Thermistors | Epoxy Type NDP

Thermometrics NTC Thermistors | Epoxy Type NK

The Thermometrics Epoxy Type NK NTC Thermistors are epoxy-coated chip thermistors that come with epoxy resin coating and tin-coated steel wires. The units have been developed for precise temperature measurement, control, and compensation. With an operating range of up to 155 °C (311°F), the thermistors are used in automotive, HVAC and white goods applications.

Thermometrics NTC Thermistors | Epoxy Type NK

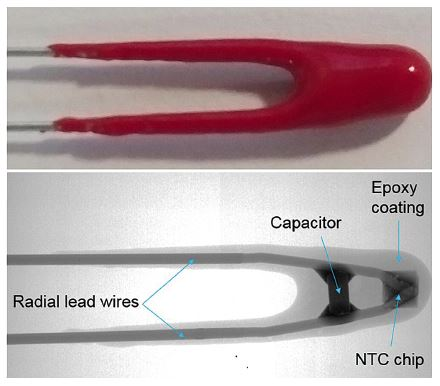

Thermometrics NTC Thermistors | Epoxy Type NKI Noise Immune

The newly designed Thermometrics Epoxy-Coated Type NKI of Noise Immune Thermistors feature a noise-immune NTC thermistor with an incorporated radio frequency (RF) decoupling function. This ensures safety from electromagnetic interference (EMI) at the component level across a broad frequency range.

Thermometrics NTC Thermistors | Epoxy Type NKI Noise Immune
