Thru-Hole Mountable Pressure Monitoring Device – PMD Series
The PMD Series is a thru-hole mountable pressure monitoring device that is ideal for low to medium pressure applications.
Company: Merit Sensor is a leader in piezoresistive pressure sensing and partners with clients to develop high performing solutions for a range of applications and industries.
Technology: Merit Sensor utilizes a piezoresistive Wheatstone bridge in a design that anodically bonds glass to a chemically etched silicon diaphragm. All products are RoHS compliant.
Sentium: Merit Sensor products add a proprietary Sentium® technology, designed to provide a best-in-class operating temperature range (-40 °C to 85 °C) and excellent stability.
Capabilities: Merit Sensor designs, engineers, fabricates, dices, assembles, and tests products from an advanced facility near Salt Lake City, Utah.
Features
Range - 5 to 50 psi (0.34 to 3.5 bar; 34.5 to 345 KPa)
Media - Clean, dry air and non-corrosive gases
Type - Absolute, gage
Packaging - Trays
Customization - Sensitivity, bridge, resistance, constraint, etc.
Benefits
Performance - Enjoy top level performance with Merit’s proprietary Sentium® technology
Cost - Save money over time with high-performing die
Security - Feel self-assured conducting business with a highly-skilled company backed by a solid parent company (NASDAQ: MMSI)
Speed - Enter the market quickly with creative and versatile solutions
Service - Experience professional, prompt, and personal support

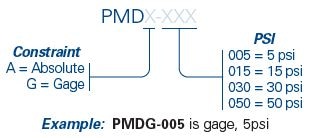

PMD Series Part Number Configurator
PMD Series Standard Part Number
| PMDG-005 | PMDA-015 | PMDG-050 |
| PMDG-015 | PMDG-030 | PMDA-050 |
| PMDA-030 |

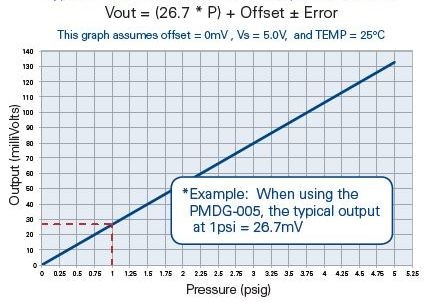

Typical Transfer Function (Sensor pn PMDG-005)
Specifications
| Parameter | Minimum | Typical | Maximum | Units | Notes |
|---|---|---|---|---|---|
| Electrical & Environmental | |||||
| Excitation (In) | 5 | 15 | V | Maximum: 3 mA | |
| Impedance | 4000 | 5000 | 6000 | Ω | |
| Operating Temperature | -40 | 85 | °C | ||
| Storage Temperature | -55 | 100 | °C | ||
| Mechanical | |||||
| Barb Torque Shear | 22 | lbf | See barb drawing | ||
| Barb Torque Shear – Post Exposure | 16 | lbf | 60 °C for 7 days @ 95% RH | ||
| Performance | |||||
| Offset | -5 | 0 | 5 | mV/V | Zero pressure; gage only; @ 25 °C |
| Non-linearity | -0.25 | 0 | 0.25 | % FSO | Best Fit Straight Line; @ 25 °C |
| Pressure Hysteresis | -0.1 | 0 | 0.1 | % FSO | @ 25 °C |
| Temp Coeff – Zero | -25 | 0 | 25 | μV/V/°C | -40 °C to 85 °C |
| Temp Coeff – Resistance | 2500 | 3100 | 3500 | PPM/°C | -40 °C to 85 °C |
| Temp Coeff – Sensitivity | -1500 | -2000 | -2500 | PPM/°C | -40 °C to 85 °C |
| Thermal Hysteresis | -0.1 | 0 | 0.1 | % FSO | Zero pressure |
| Long-Term Stability | -0.1 | 0 | 0.1 | % FSO | |
| Burst Pressure | 10X | Full scale pressure | |||
| Full-Scale Output (@ 5 volts excitation) | |||||
| 5 psi (0.34 bar; 34.5 KPa) | 107 | 133 | 160 | mV | Additional outputs available upon request |
| 15 psi (1 bar; 103 KPa) | 120 | 150 | 180 | mV | |
| 30 psi (2.1 bar; 207 KPa) | 128 | 160 | 192 | mV | |
| 50 psi (3.5 bar; 345 KPa) | 107 | 133 | 160 | mV | |
Dimensions and Electrical (millimeters)
