VEGABAR 38 Pressure Transmitter for Measuring Gases, Vapors, and Liquids up to 130 °C
VEGABAR 38 is a universal pressure transmitter with a ceramic measuring cell that can measure gases, vapors, and liquids up to 130 °C. The optional universal connection for hygienic adapters means leaner stock keeping and minimized installation effort. The sensordisplay has an on-site operation and a colored 360° status display.
VEGABAR 38’s application area includes:
From thread ½"
Universal connection G1" for hygiene adapter
hygienic connections
4–20 mA
Three-wire: PNP/NPN
4–20 mA
IO-Link
Ex and hygiene approval
On-site display
Colored 360° status display
Three-button operation
Thread G½, EN837; manometer connection/316 L. Image Credit: VEGA Grieshaber KG
Thread G1, ISO228-1; cone 40°, front-flush/316 L (Ra < 0.76 µm); for hygienic adapter metallic sealing. Image Credit: VEGA Grieshaber KG

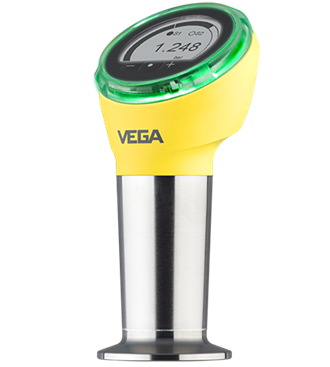

Clamp 1" PN40 (ø50.5 mm) DIN32676, ISO2852; front-flush/316 L (Ra < 0.76 µm). Image Credit: VEGA Grieshaber KG
UserBenefits
Colored 360° status display, display, and on-site operation with VDMA menu structure
High plant availability through maximum overload and vacuum resistance of the ceramic measuring cell
Simple integration into control systems via IO-Link communication
Application
Other Applications
Fermentation tank: Level, pressure, and point level measurement in the fermentation tank
Pump room: Pressure monitoring and flood protection in the pump room
Flotation: Level and pressure measurement in the flotation process
Batching tank for coatings: Level measurement in the coating batching tank
Technical Specifications
Source: VEGA Grieshaber KG
| . | . |
|---|---|
| Measuring range – Pressure | -1 ... 60 bar[Bar-kPa-psi] |
| Process temperature | -40 ... 130 °C[°C-°F] |
| Accuracy | 0.3% |
| Materials, wetted parts |
PVDF 316L Duplex (1.4462) Ceramic |
| Threaded connection | ≥G½, ≥½ NPT |
| Hygenic fittings |
Clamp ≥ 2", DN50 - DIN32676, ISO2852 Clamp ≥ 1" - DIN32676, ISO2852 Clamp ≥ 1½" - DIN32676, ISO2852 Slotted nut ≥ 1½", ≥ DN40 - DIN 11851 Slotted nut ≥ DN25 - DIN 11851 SMS DN38 Hygienic fittings ≥ DN25 - DIN11864-1-A Hygienic fittings ≥ DN40 - DIN11864-1-A Varivent N50-40 SMS DN25 Ingold connection PN10 Varivent F25 |
| Seal material |
EPDM FKM FFKM |
| Housing material | Plastic |
| Protection rating |
IP66/IP67 IP65 |
| Output |
4…20mA Three-wire (PNP/NPN, 4…20mA) IO-Link |
| Ambient temperature | -40 ... 70 °C |
