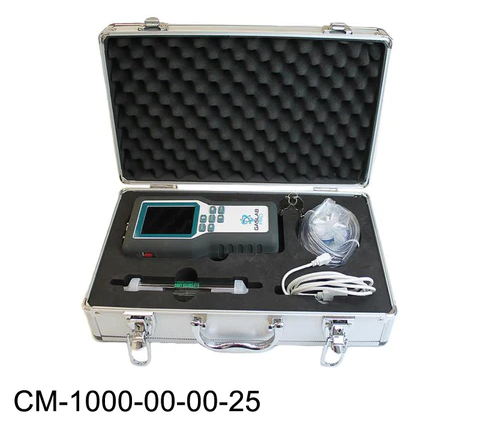

10% CO2 Sampling Data Logger

Measurements of carbon dioxide concentrations in enclosed spaces, such as those found in life sciences, incubation, science, and medical applications, are made possible by the 10% Carbon Dioxide Sampling Data Logger.

Image Credit:CO2Meter

Features

Li-ion rechargeable batteries (three included) with a 30-plus hour runtime

Real-time graphing and data logging using a micro SD card (16 GB included)

Quick CO₂ sampling enables measurements in a matter of seconds

Programmable by the user to measure at predetermined intervals

Applications

Scientific Research

Life Sciences

Bio - incubation

Medical Facilities

Specifications

Dimensions: 225.8×99.6×55 mm (8.9×3.9×2.2 in)

Power: (3) Li-ion 18650 Batteries

Sensing method: NDIR (Non-Dispersive Infrared)

Storage Temperature: –20~60 °C (-4~140 °F)

Measures: CO₂ - 0-10% (0-100,000 ppm) CO₂

Relative Humidity: 0~95%, ±3% @ 25 °C (20~80% RH), others ±5%

Display Resolution: CO₂: 1 ppm, 10 ppm, or 100 ppm

Operating Conditions: 0~50 °C (32~122 °F), 0~95% RH, non-condensing

Alarm Volume: 80 db ±5% @ 10 cm

Temperature: 0~50 °C,±1 ℃

Barometer: 50~110 kPa, ±0.4 kPa

Accuracy: ±70 ppm +/- 5% of reading @ STP

Weight: 305 g (without batteries)

Includes

Tubing - 1/8” ID x 1/4” OD×1/15” Wall Clear PVC Tubing 10 feet long

Includes a 16 GB SD card with crucial calibration files.

Water Trap

Handheld CO₂ Sampling Data Logger Detector

3 Li-Ion Batteries

Hydrophobic and Particulate Filters

Manual

USB 1.5M cable

Software

This device features data logs that are stored on a micro SD Card. This device is incompatible with the GasLab® software.

Accessories

BAT-18650 - EBL 18650 3.7 V Li-ion Rechargeable Batteries

All handheld gas detectors in the CM-500 and CM-1000 series can be used with EBL Intelligent Batteries, which offer a quick charge and upgraded ETL certification

EBL Universal Battery Charger for 3.7 V Rechargeable Batteries

Users can charge lithium batteries with the EBL Universal Battery Charger when plugged into a USB outlet. Additionally, the battery charger shows the charge levels clearly by turning green when the battery is fully charged.
