Model 24A - Pressure Transmitter

The Viatran 24A pressure transducer is a highly adaptable silicon sensor with an output of 0-5 Vdc, and 3000-5000 psi (0.2 to 345 bar). It can be used efficiently in a host of industrial settings, because of the wide range of pressure measurements with a standard linearity measuring ±0.25% FSO or less. Additionally, even higher linearities of ±0.15% or ±0.10% FSO may be requested. Again, apart from the standard output signal range of 0-5 Vdc, other options are available.

Features

The Viatran model 24A offers:

Flexibility for applications at low pressure

Excellent precision

Conformity with RoHS standards

Multiple options for linearity and output signal range

Constructed wholly of stainless steel

An optional circuit for calibration of the shunt

Representative Uses

The 24A is commonly used for applications such as:

Hydraulic devices

Pumps and compressors

Rolling mills

Die cast processes

Test stands for production or engines

Operating and Other Relevant Parameters

The following table shows relevant performance parameters:

Electrical parameters of the 24A are as follows:

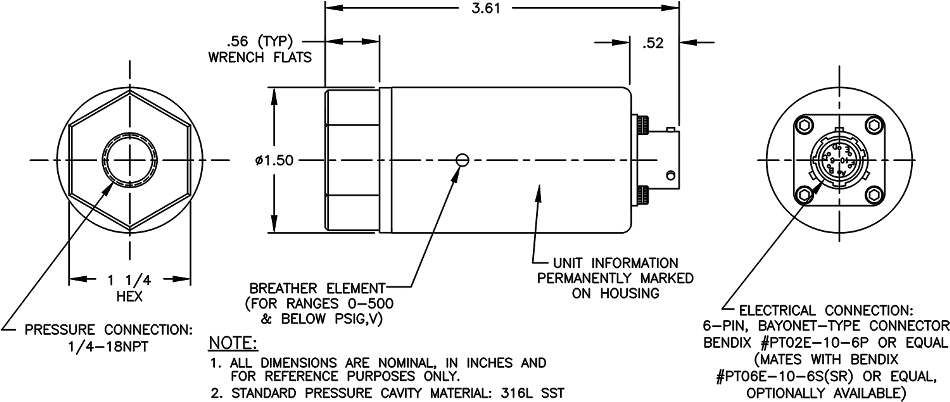

Mechanical properties are summarized below:

The 24A is constructed from the following materials:

The available options for Model 24A are shown in the following table:

Note: The use of some of these options may lower the standard performance parameters of the device. For more information, the Viatran representative may be contacted.
