OEM Sensor for High Pressure and High Volume - TR Series

The TR Series from Merit Sensor is ideal for high-volume, high-pressure OEM applications.

Features

Range 15 to 500 psi (1.03 to 34.47 bar; 103.4 to 3,447.4 kPa)

Media Air, gases and liquids

Type Absolute, gage

Flexibility Sensitivity, bridge, resistance, constraint, etc.

Temperature range -40 to +150 °C

Qualification AEC-Q100

Packaging Bulk, Tape and Reel

Sealing Designed for either face or radial sealing to meet customers' needs

Benefits

Cost Due to high-performing die, money is saved over time

Performance Make the most of best-in-class performance due to Merit’s proprietary Sentium technology

Speed Get to market quickly with flexible and creative solutions

Security Feel confident doing business with a qualified company supported by a solid parent company (NASDAQ: MMSI)

Service Experience prompt, professional and personal support

Typical Applications

Industrial

HVAC

Refrigeration

Industrial Automation

Automotive

Transmission Pressure

Oil Pressure

EGR/Exhaust

Fuel Rail

TR SeriesPlay

Applications

For over 20 years Merit Sensor Systems has partnered with customers to design, fabricate, assemble and package reliable, economical piezoresistive pressure sensor solutions for automotive, industrial, defense, medical, aviation and consumer applications.

Merit Sensor provides full-service design capabilities, flexible shipping, piezoresistive technology (PRT), in-house wafer fabrication, packaging and assembly, complete pressure measurement (absolute, gage, differential and vacuum) expansive pressure ranges (0.15 psi to 15,000 psi), and unsurpassed operating temperature range (-40 °C to 150 °C) via Merit Sensor’s Sentium^® process. Furthermore, Merit Sensor is able to provide unparalleled flexibility to tailor pressure sensing solutions to match customers’ applications.

In contrast to other pressure sensor suppliers, Merit Sensor can offer customers totally customized pressure sensor designs with large or smaller/limited production runs. Merit Sensor’s customers range from pressure sensor transducer manufacturers who are already experts in pressure sensing technology and depend on Merit Sensor for extremely stable and sensitive MEMS sensing elements (bare die), to customers who have limited to no experience in the pressure sensing world and seek Merit Sensor to assist with a totally custom design and implementation of a pressure sensor that ideally fits their application.

At Merit Sensor, engineers are application experts. They are ready to assist customers design the application to work with a pressure sensor, and/or design a tailored pressure sensing solution that suits specific applications. In case a customer is unsure whether a pressure sensor is right for a particular application, Merit Sensor can help make that choice.

Specifications

¹ Device will cease operation during supply voltage fault.² Human body model 1.5 kOhm/100 pF.³ Pressure Error includes all error for hysteresis and linearity over the entire operating temperature range. It does not include lifetime drift.

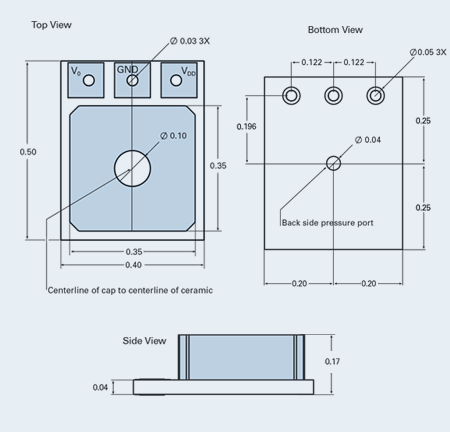

Part Details

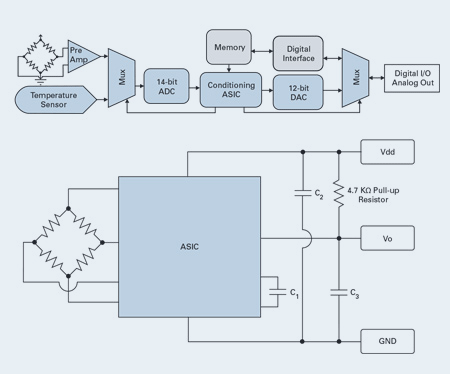

Electrical

Standard Part Numbers
