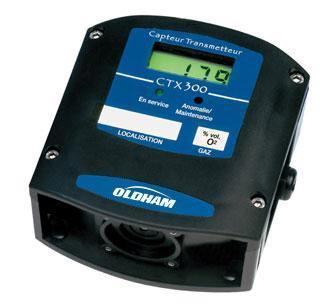

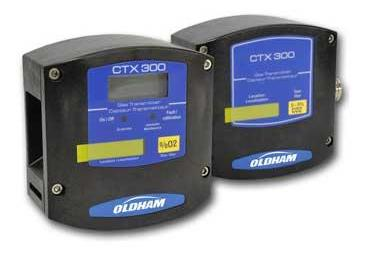

Oxygen Detector - CTX 300

The CTX 300 oxygen detector available from Teledyne can fulfill the most demanding safety needs of users, especially when hazardous levels of oxygen (O₂) or toxic gases endanger the safety of an unclassified location.

The CTX 300 oxygen detector has been designed to detect O₂, refrigerant, and toxic gases. It also utilizes the latest sensor for detecting carbon dioxide (CO₂) across three different ranges—0% to 5% volume, 0% to 100% volume, and 0 to 5000 ppm.

The CTX 300 oxygen detector conveys information in record time. With an extensive range of sensor options, the detector has the flexibility to safeguard several potentially dangerous settings.

The unit can be easily maintained with an optional LCD and pre-calibrated sensors.

Features of the CTX 300 Oxygen Detector

The CTX 300 detects CO₂, O₂, refrigerant, and toxic gases

Includes pre-calibrated and plug-in sensors

Features a 4 to 20 mA output analog transmitter with backlit display (optional)

Available with semiconductor, infrared, and electrochemical sensors

Comes in an infrared version for CO₂

Complies with EN14624 standards for R134a monitoring

With over 30 different sensors, even the most toxic gases in the industry can be detected
