Pressure Sensor VEGABAR 28 with Switching Function
VEGABAR 28, a universal pressure transmitter, has a ceramic measuring cell for the measurement of gases, vapors, and liquids up to 130 °C. The optional universal connection for hygienic adapters guarantees leaner stock keeping and decreased installation effort.
From thread ½"
Hygienic connections
Universal connection G1" for hygiene adapter
4 ... 20 mA, three-wire: PNP/NPN
4 ... 20 mA, IO-Link
Ex and hygiene approval
Colored 360° status display
Thread G½, EN837; manometer connection/316 L.Image Credit: VEGA Grieshaber KG
Thread G1, ISO228-1; cone 40°, front-flush/316 L (Ra < 0.76 µm); for hygienic adapter metallic sealing.Image Credit: VEGA Grieshaber KG

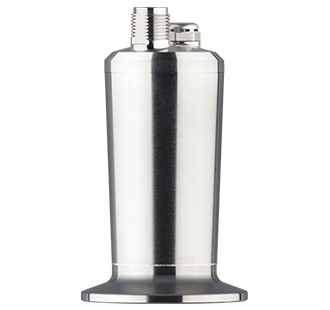

Clamp 1" PN40 (ø50.5 mm) DIN32676, ISO2852; front-flush/316 L (Ra < 0.76 µm).Image Credit: VEGA Grieshaber KG
Users’ Benefit
Easy wireless setup and diagnostics with a smartphone
Straightforward integration into control systems via IO-Link communication
Colored 360° status display that is adjustable
Applications
Other Applications
Green beer storage tank: Level, pressure, and limit level measurement in the green beer storage tank
Feed line compressors: Pressure monitoring in the oxygen supply system
Preheater: Pressure measurement in the preheater
Bottle cleaning: Pressure and limit level measurements in the bottle cleaning process
Technical Specifications
Source: VEGA Grieshaber KG
| . | . |
|---|---|
| Measuring range – Pressure | -1 ... 60 bar[Bar-kPa-psi] |
| Process temperature | -40 ... 130 °C[°C-°F] |
| Accuracy | 0.3% |
| Materials, wetted parts |
PVDF Duplex (1.4462) Ceramic 316/316 L |
| Threaded connection | ≥G½, ≥½ NPT |
| Hygenic fittings |
Clamp ≥ 2", DN50 - DIN32676, ISO2852 Clamp ≥ 1" - DIN32676, ISO2852 Clamp ≥ 1½" - DIN32676, ISO2852 Slotted nut ≥ DN25 - DIN 11851 Slotted nut ≥ DN32 - DIN 11851 SMS 1145 DN51 SMS DN38 Hygienic fittings ≥ DN25 - DIN11864-1-A Hygienic fittings ≥ DN40 - DIN11864-1-A Varivent N50-40 SMS DN25 Ingold connection PN10 Varivent F25 |
| Seal material |
EPDM FKM FFKM |
| Protection rating |
IP65 IP68 (0,5 bar)/IP69 |
| Output |
4…20mA Three-wire (PNP/NPN, 4…20mA) IO-Link |
| Ambient temperature | -40 ... 70 °C |
