Surface Mountable Pressure Monitoring Device – MS Series
The MS Series is a surface-mountable pressure monitoring device that is ideal for low to medium pressure applications.
Company: Merit Sensor is a leader in piezoresistive pressure sensing and partners with clients to develop high performing solutions for a range of applications and industries.
Technology: Merit Sensor utilizes a piezoresistive Wheatstone bridge in a design that anodically bonds glass to a chemically etched silicon diaphragm. All products are RoHS compliant.
Sentium: Merit Sensor products add a proprietary Sentium® technology, designed to provide a best-in-class operating temperature range (-40 °C to 85 °C) and excellent stability.
Capabilities: Merit Sensor designs, engineers, fabricates, dices, assembles, and tests products from a advanced facility near Salt Lake City, Utah.
Features
Range - 15 to 500 psi (1 to 34.5 bar; 103 to 3,447 KPa)
Media - Clean, dry air and non-corrosive gases
Type - Absolute, gage
Flexibility - Sensitivity, bridge, resistance, constraint, etc.
Packaging - Substrates, gels, covers, etc.
Benefits
Performance - Enjoy top quality performance because of Merit’s proprietary Sentium® technology
Security - Feel self-assured doing business with a proficient company backed by a solid parent company (NASDAQ: MMSI)
Service - Experience personal, prompt, and professional support
Cost - Save money over time with high-performing die
Speed - Get to market fast with flexible and creative solutions
MS Series Part Number Configurator
MS Series Standard Part Numbers
| . | ||
|---|---|---|
| M11-0015-11 | M22-0300-11 | M21-0015-21 |
| M11-0050-11 | M22-0500-11 | M21-0050-21 |
| M11-0100-11 | M11-0015-21 | M21-0100-21 |
| M11-0300-11 | M11-0050-21 | M21-0300-21 |
| M11-0500-11 | M11-0100-21 | M21-0500-21 |
| M12-0015-11 | M11-0300-21 | M22-0015-21 |
| M12-0050-11 | M11-0500-21 | M22-0050-21 |
| M12-0100-11 | M12-0015-21 | M22-0100-21 |
| M12-0300-11 | M12-0050-21 | M22-0300-21 |
| M12-0500-11 | M12-0100-21 | M22-0500-21 |
| M21-0015-11 | M12-0300-21 | M21-0015-22 |
| M21-0050-11 | M12-0500-21 | M21-0050-22 |
| M21-0100-11 | M11-0015-22 | M21-0100-22 |
| M21-0300-11 | M11-0050-22 | M22-0015-22 |
| M21-0500-11 | M11-0100-22 | M22-0050-22 |
| M22-0015-11 | M12-0015-22 | M22-0100-22 |
| M22-0050-11 | M12-0050-22 | |
| M22-0100-11 | M12-0100-22 |
Specifications
| Parameter | Minimum | Typical | Maximum | Units | Notes |
|---|---|---|---|---|---|
| Electrical & Environmental | |||||
| Excitation (In) | 5 | 15 | V | Maximum: 3 mA | |
| Impedance | 4000 | 5000 | 6000 | Ω | Optional: 3,500 +/- 500 |
| Operating Temperature | -40 | 85 | °C | Sentium® technology | |
| Storage Temperature | -55 | 160 | °C | ||
| Performance | |||||
| Offset | -10 | 0 | 10 | mV/V | Zero pressure; gage only; @ 25 °C |
| Non-linearity | -0.2 | 0 | 0.2 | % FSO | Best Fit Straight Line; @25 °C |
| Pressure Hysteresis | -0.1 | 0 | 0.1 | % FSO | @25 °C |
| Temp Coeff – Zero | -25 | 0 | 25 | μV/V/°C | -40 °C to 85 °C |
| Temp Coeff – Resistance | 2300 | 2800 | 3300 | PPM/°C | -40 °C to 85 °C |
| Temp Coeff – Sensitivity | -1500 | -2200 | -2500 | PPM/°C | -40 °C to 85 °C |
| Thermal Hysteresis | -0.1 | 0 | 0.1 | % FSO | Zero pressure |
| Burst Pressure | 2X | Room Temperature | |||
| Full-Scale Output (@ 5 volts excitation) | |||||
| 15 psi (1 bar; 103 KPa) | 60 | 75 | 90 | mV | Closed bridge only |
| 50 psi (3.4 bar; 345 KPa) | 100 | 125 | 150 | mV | |
| 100 psi (6.9 bar; 689 KPa) | 120 | 150 | 180 | mV | |
| 300 psi (20.7 bar; 2068 KPa) | 120 | 150 | 180 | mV | |
| 500 psi (34.5 bar; 3447 KPa) | 140 | 175 | 210 | mV | |

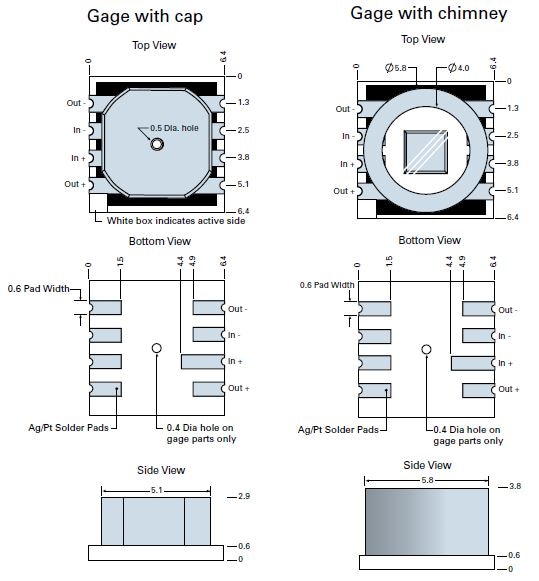

Dimensions and Electrical (millimeters)
Packaging and Shipping (millimeters)
